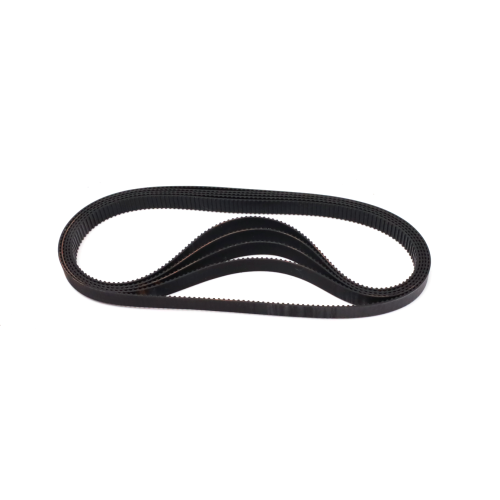

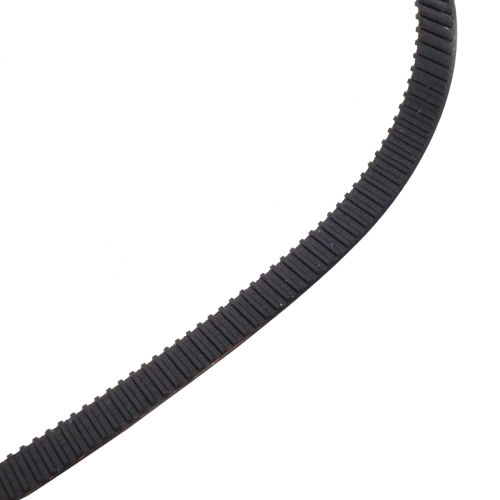

192MXL Rubber Timing Belt For Compact Devices
- Model
- 192
Review
Description
Features
Accurate and stable transmission
High flexibility, suitable for small pulley diameters
Low noise and maintenance-free operation
Excellent resistance to wear, oil, and aging
Wide temperature range: –20°C to +100°C
Applications
Office automation equipment
Textile machinery
Medical and measuring instruments
3D printers and small machine tools
Electronic devices and precision drives
Item Specification

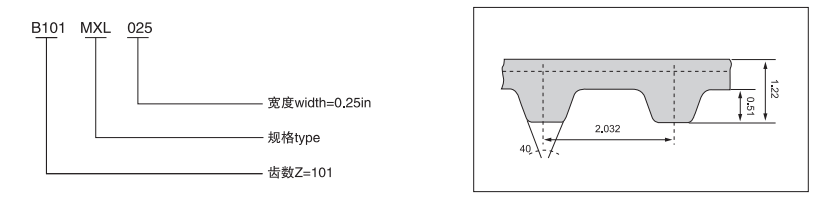

Pitch 2.032 mm
Tooth Profile Trapezoidal (MXL type)
Material Chloroprene Rubber (CR), Fiberglass Cord, Nylon Fabric
Working Temperature –20°C ~ +100°C
Available Widths 3.2 mm, 6.4 mm, 9.5 mm, 12.7 mm (customized width on request)
Customization Options:
We offer a wide range of customized MXl rubber timing belts to meet various industrial requirements, including:
Natural rubber series
Chloroprene rubber series
Nitrile rubber series
Reinforced rubber timing belts
Silicone high-temperature resistant series
Fluororubber high-temperature resistant series
EPDM material series
Anti-static series
Ozone-resistant series
Clean type (anti-powder shedding) series
Fiber-reinforced series
Anti-edge-warping series
Double cord layer series
Sponge-coated series
Open-End Timing Belt Cutting Width RangeThe same specification models are also available in open-end timing belts.The cutting width range for each model is shown below:
